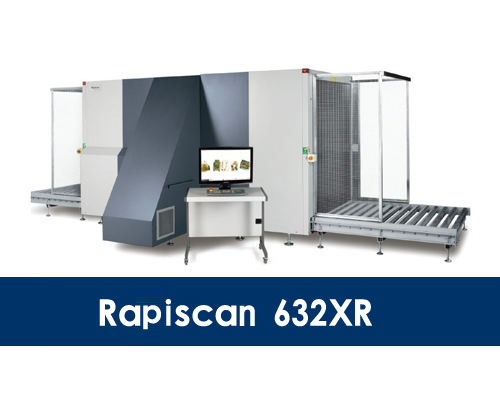

产品简介：美国RapiScan 632XR进口X光机是一款1,500毫米(59.1英寸)宽x 1,650毫米(65.0英寸)高隧道的大型货物安全检查设备，可以检测3,000公斤(6,600磅)重量的货物，是货物安全检查的首选安检仪。
特点：
●1.5m*1.6m大通道进口检测设备。
●物流中心、码头货物安检首选产品。
其他特点：
Rapiscan的OS600软件。
高清图像显示效果。
Rapiscan的创新检测私侦查技术。
危险物品深色彩显示效果。

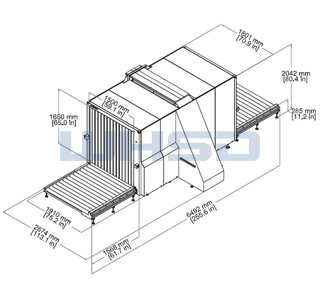

物理规格：
维度： 长度： 6,492毫米(255.6 in.)
高度： 2,042毫米(80.4 in.)
宽度： 2,874毫米(113.1 in.)
隧道大小： 1,500毫米(w) x 1,650毫米(h) (59.1 x 65.0 in.)
传动机速度： 0.10到0.20 m/sec (19.7到39.4英尺或分钟)
传动机最大载荷： 3,000公斤(6,614磅)均匀地分布了
传动机高度： 285毫米(11.2 in.)
近似重量： 网： 2,154公斤(4,749磅)
总： 3,500公斤(7,716磅)
系统力量： 115 VAC +/- 10%/50或60Hz/10安培或230 VAC +/- 10%/50或60Hz/5安培
X-射线发电器和图象表现：
钢渗透： 保证的35毫米
导线标准： 38保证的AWG， 标准40AWG。
发电器冷却： 强制性冷却。
阳极电压： 操作在150kV
管电流： 1.5 mA
取向： 水平
操作环境：
存贮温度： -20ºC对50ºC
操作温度： 0ºC对40ºC
相对湿度： 5到95%不冷凝。
安全标准：
所有Rapiscan系统产品遵照可适用国际健康与安全章程，包括美国食品与药物管理局X射线辐射系统检测标准(联邦标准21CFR 1020.40)。
外面盘区域最大漏出辐射较少比0.1mR/hr
英文参数：
With a generous tunnel opening,a heavy-duty roller bed, and two options of X-ray generator, the Rapiscan 632XR is designed to inspect pallets and other large cargo weighing up to 3,000 Kgs (6,600 pounds) without compromising throughput. ISO Standard 6780 pallet types and lower deck pallet types shipments can be screened wrapped or break bulk for maximum operational flexibility. With high resolution imaging, abundant image processing tools and two automatic detection features operators can detect potential threats, counter trade fraud and identify contraband.
美彩国际The Rapiscan 632XR meets the most rigorous detection and image quality requirements as set by the U.S. Transportation Security Administration (TSA), U.K. Department of Transport (DfT), E.U. European Civil Aviation Conference (ECAC) and French civil aviation authority (STAC).
Feature and Option Highlights
美彩国际Greatest Number of Operator-Assist Tools Enables Highest Throughput
With over 14 image processing tools and 2 automatic detection functions, the feature rich software helps the operator easily and accurately detect contraband for the highest throughput and least operator fatigue.
Regulatory Approved Threat Image Projection (TIP) and Tip Network (TIPNet)
Threat Image Projection (TIP) is the preferred operator performance training and measurement tool used by regulatory agencies worldwide. Digital images of potential threats, are interlaced with scanned object. The program gives supervisors and managers real-time feedback on operators’ performance and helps to keep operators alert and aware.
Automatic Detection of Explosives
Target™ automatically detects a wide range of explosives in real time during the scanning process by visibly highlighting a potential threat on the X-ray image.
美彩国际Density Threshold Alert (DTA
DTA generates a visible alarm when an imaged object exceeds a user-specified density threshold.
